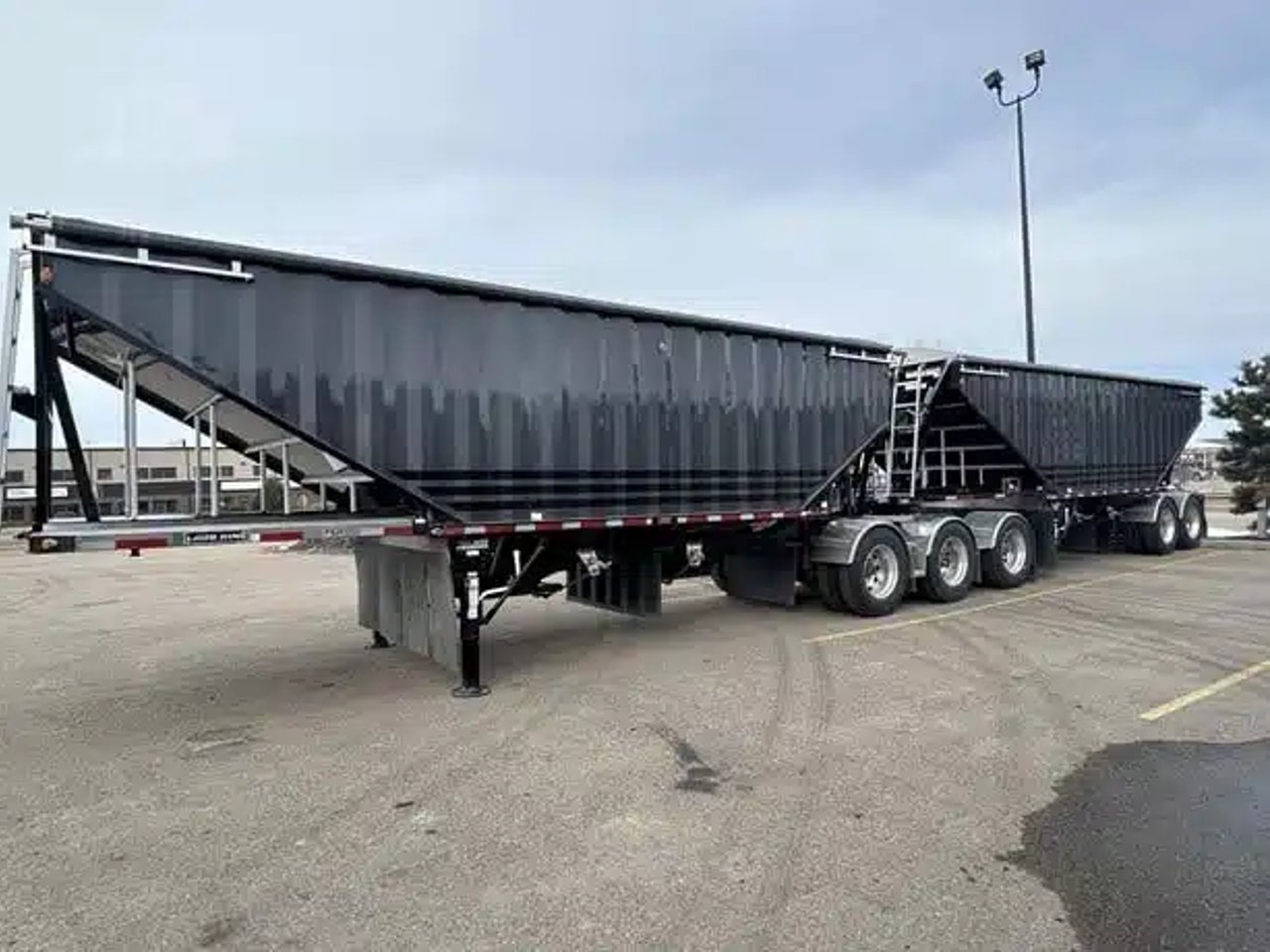

2026 Lode King SUPER B GRAIN TRAILER Remorque à grain

LODE KING HGF Super B Steel Grain Trailer

LEAD - LENGTH-28’ 6” PULL - 30' WIDTH-102” DRAWING-95AA0211 KING PIN-24” setting PULL 15" SETTING COUPLER PLATE-1/4” S.W. HEIGHT-82” SLOPE SHEETS-Alum-Black exterior LANDING GEAR-Mark V LGS-ZZ001- CS586 with cushion foot 5TH WHEEL-Holland FW35Y700XL00 stationary, bolt-on (base model HGF Lead) SUSPENSION-Intraxx AANT23K-14” LDA, tridem, P-Spindle -61” spread PULL 49" spread -Hendrickson Tiremaxx Pro Inflation system for undress Intraxx tridem, set for constant pressure -Air gauge mounted in a box with a window and a light, hopper trailers -Air outlet chuck in air gauge box. Parker model B-33, includes loose mating male connector (tape inside air gauge box) AXLES-Intraxx 31” wall, 5.75” round, 77.5” track, HP Spindle upgrade LIFT AXLE- n/a ABS-4S2M Wabco (3 axle, B-Lead) Drum Brake BRAKE POTS-Haldex 30/30 Gold seal, Production SLACKS-Haldex S-ABA, 5/5”, 28 spline CAMS-28 spline with cam enclosures BRAKE LINING-HXS-H23 Extended Service SEALS-Semi fluid grease filled wheel end package, P-Spindle, Included vented axle, National seal, Ventless hubcap, Precision nut, 24-month LK Warranty HUB-10 stud HP Dura-Light hub/long stud/P-style spindle DRUM-10 stud cast drum

WHEELS-8.25 x 24.5 Clean Buff TIRES-XZE2-11R 24.5 Michelin, G-22 TARP-Michel’s select tarp 8.5 x 28’, c/w flip stops, reinforced over crossbows, 90 degree formed end wfrercaps, fiberglass ridge pole, dipped ro
