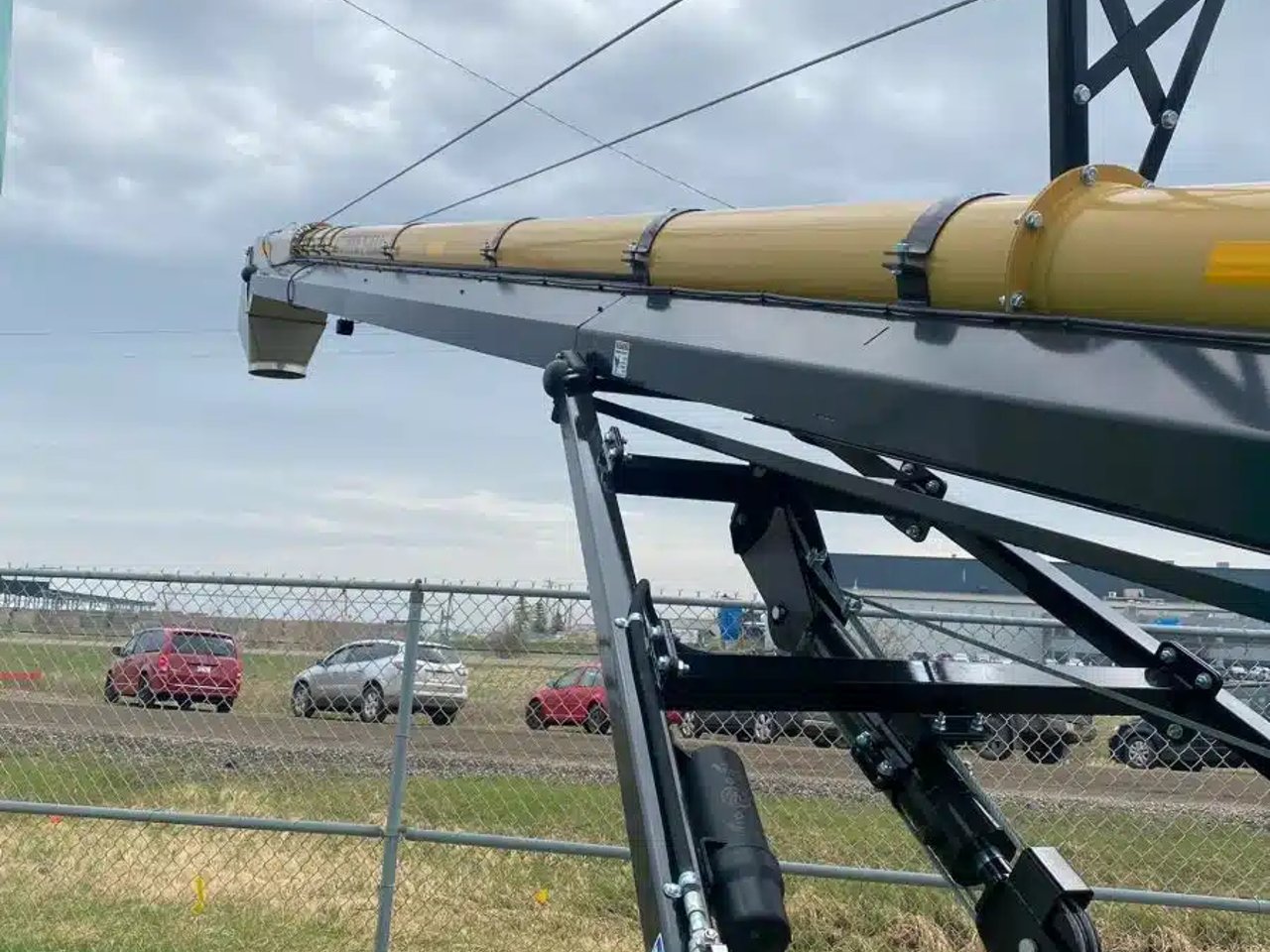

CONVEY-ALL 1650 TL Vis à grain

Convey-All 1650 Steel Oilseed Series Truck Load Conveyor

(* Priced With stainless steel ends. Ask about other options and pricing)



Flaman Agriculture is now offering the 1650-TL Oilseed Series from Convey-All. Although Convey-all started with the excellent design of the 1600 models, key components have now been upgraded to handle the harsh conditions canola and hemp seeds create.

Traditional belts used on cereal grain conveyors can shrink or warp when handling oilseed crops. Oilseeds caught and crushed between the roller and belt release oil. This build-up of oil and debris creates additional wear and tear on the parts, reducing the longevity of your conveyor. Convey-All beveled the edge of the belt to solve this issue.

Convey All has upgraded its 1650-TL conveyor to handle the harsh conditions created by oilseeds. A double overlapping flashing at the feed conveyor was added to reduce the number of crushed seeds, and more scrapers along the belt were installed to prevent tiny seed build-up.

On the Oilseed Series, Convey All reduced the overall speed of the conveyor to ensure your cash crop is handled gently and the number of crushed seeds is diminished. The 1650-TL Oilseed still moves an impressive quantity of grain at 7,900 bushels per hour with the 16" skived-edge belt running inside a 10" wind guard tube.

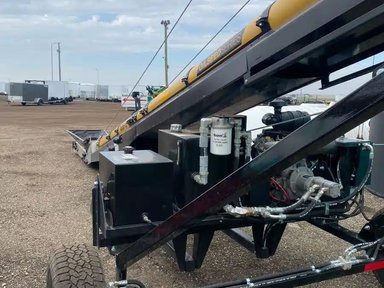

1650-TL Conveyor comes standard with the signature hydraulic drive and mover kit powered by a 37HP Vanguard engine and an adjustable discharge hood to direct grain where you need it to be.

The truck load features include a self-contained drive system, heavy duty mover kit, steering wheel(s) with hydraulic hopper lift, steel fuel tank, hydraulic oil reservoir, highway tires and discharge hood with electric actuator.



Specs:

•

• 10" Tube

• 16" Belt

• 50' Long

• Skived Chevron Belt

• OilSeed Series Scrapers

• Stainless Steel Ends

• Canola Approved

• Transport Length: 53', 7"

• Axle Width: 8', 4"

• Self-Contained Heavy Duty Hydraulic Drive Mover Kit

• 37 HP EFI Engine

• Light Package Included

• Collapsible Hopper

• Full length Wind Guards

• Heavy-Duty A-Frame Undercarriage

• Hydraulic Lift

• Spring Tension Drive Box

• Steering Wheel(s) with Hydraulic Hopper Lift

• Hydraulic Valves and Controls on Tow Vehicle’s Driver Side

• Steel fuel tank, hydraulic oil reservoir

• Highway tires

• Discharge hood with electric actuator
