John Deere 400R - Arroseur - Automoteur Specifications

Overview

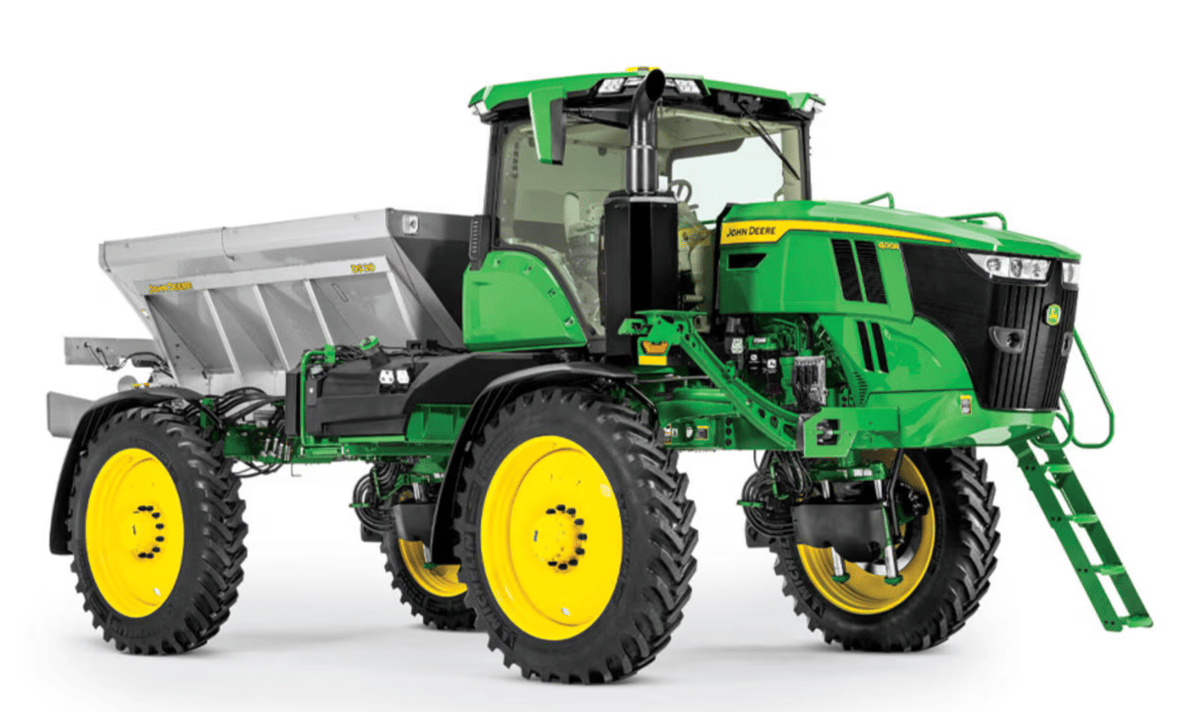

The John Deere 400R is a robust dry spreader designed for efficient fertiliser application. Featuring modern technological integrations, this equipment is built to meet the demands of contemporary farming operations.

Engine

Powered by a John Deere engine, the 400R boasts a six-cylinder configuration with a displacement of 9.0 L (549 cu in.). It delivers a rated power of 243 kW (326 hp) and has a maximum power output of 266 kW (357 hp). The fuel capacity stands at an impressive 565 L (149.2 gal.), and the emissions meet the Final Tier 4 (FT4) standards. Additionally, it has a DEF capacity of 29.5 L (7.8 gal.).

Transmission

The 400R is equipped with a hydrostatic transmission, providing seamless operation across various terrain types. This type of transmission enhances the machine's versatility and efficiency during use.

Tank

The dry box tank of the 400R has a capacity of 5.7 m³ (200 cu ft), ideal for handling substantial amounts of fertiliser. Ensuring efficient spreading, the tank’s design supports a higher payload while maintaining balance during operation.

Nozzles and Application

This dry spreader features variable rate compatibility for precise application rates, ensuring optimal fertiliser distribution. Although specific nozzle types are not indicated, the system is designed to facilitate effective spreading processes.

Guidance and Automation

The John Deere 400R comes GPS ready, integrating with a StarFire™ receiver for enhanced guidance. It also features JDLink™ connectivity for real-time data exchange, making it suitable for modern precision agriculture practices.

Chassis and Dimensions

With a maximum track width of 406.4 cm (160 in.) and a minimum of 305 cm (120 in.), the chassis is designed for stability and manoeuvrability. The 400R has a turning radius of 8.7 m (28.5 ft) and a ground clearance of 152.4 cm (60 in.), allowing it to navigate various crop types with ease. The operating weight of the machine is 12,082 kg (26,636 lb) when empty, and the wheelbase measures 430 cm (169.3 in.).
